Juggler's Slide Rule - S2
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Juggler's Slide Rule - S2 (2012) |
|||||
|
|||||
|
Summary | ||||
| System: | System Tombeur | ||||
| Specialization: | Juggling | ||||
| Type: | Closed frame | ||||
| Material: | Mahogany laminate | ||||
| Facings: | Perspex/paper | ||||
| Scale Length: | 24.4cm | No of Scales: | 3 | ||
| Front Length: | 268mm | Front Width: | 36mm | ||
| Language: | English | Origin: | England | ||
| Date: | 2012, December | ||||
| Features/Notes: | Basic Juggler's slide rule. | ||||
| Scales (colours as shown) | |||||

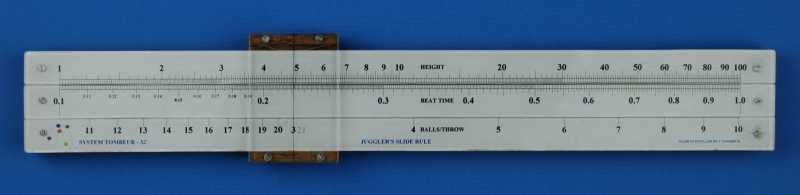

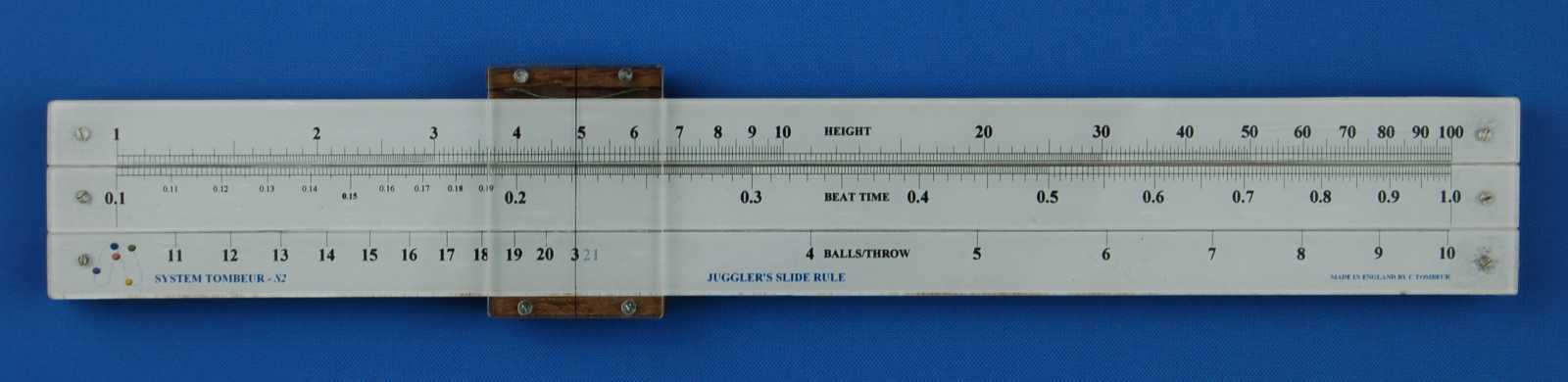

| Front: | A [ C ] §1 | Back: | - | ||
| Labels Left: | - | Labels Left: | - | ||
| Labels Right: | HEIGHT [ BEAT TIME ] BALLS/THROW | Labels Right: | - | ||
| Style: | Railway track | Typeface: | Serif | ||
| Extensions: | - | Decimals: |
Integers on C labelled as tenths
Tenths between 1 & 2 on C labelled as hundredths |
||
| Gauge Marks: | - | Rulers: | - | ||
| Features/Notes: |
Printed on paper with Perspex facing.
C scale numbers are labelled as x/10 §1 scale (labelled 'BALLS/THROW') is a specialist index scale of throw weights in a juggling pattern. Labels are printed to the right of the centre of the scales. |
||||
| Construction | |||||
| Stock: |

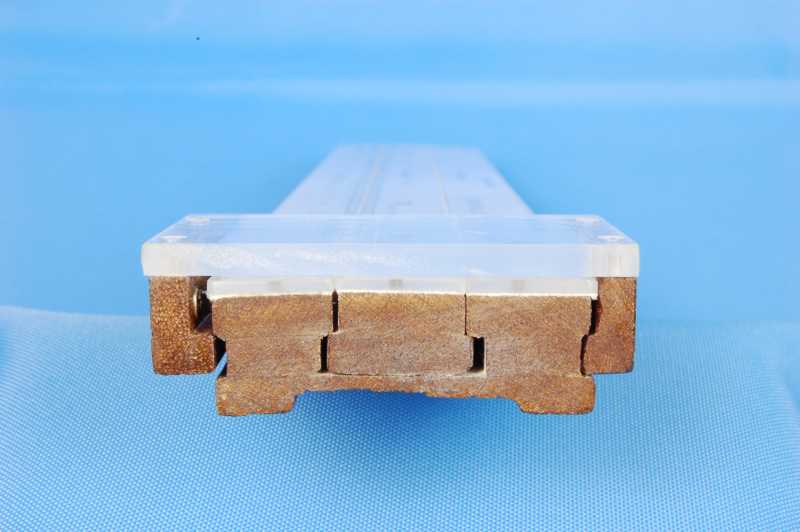

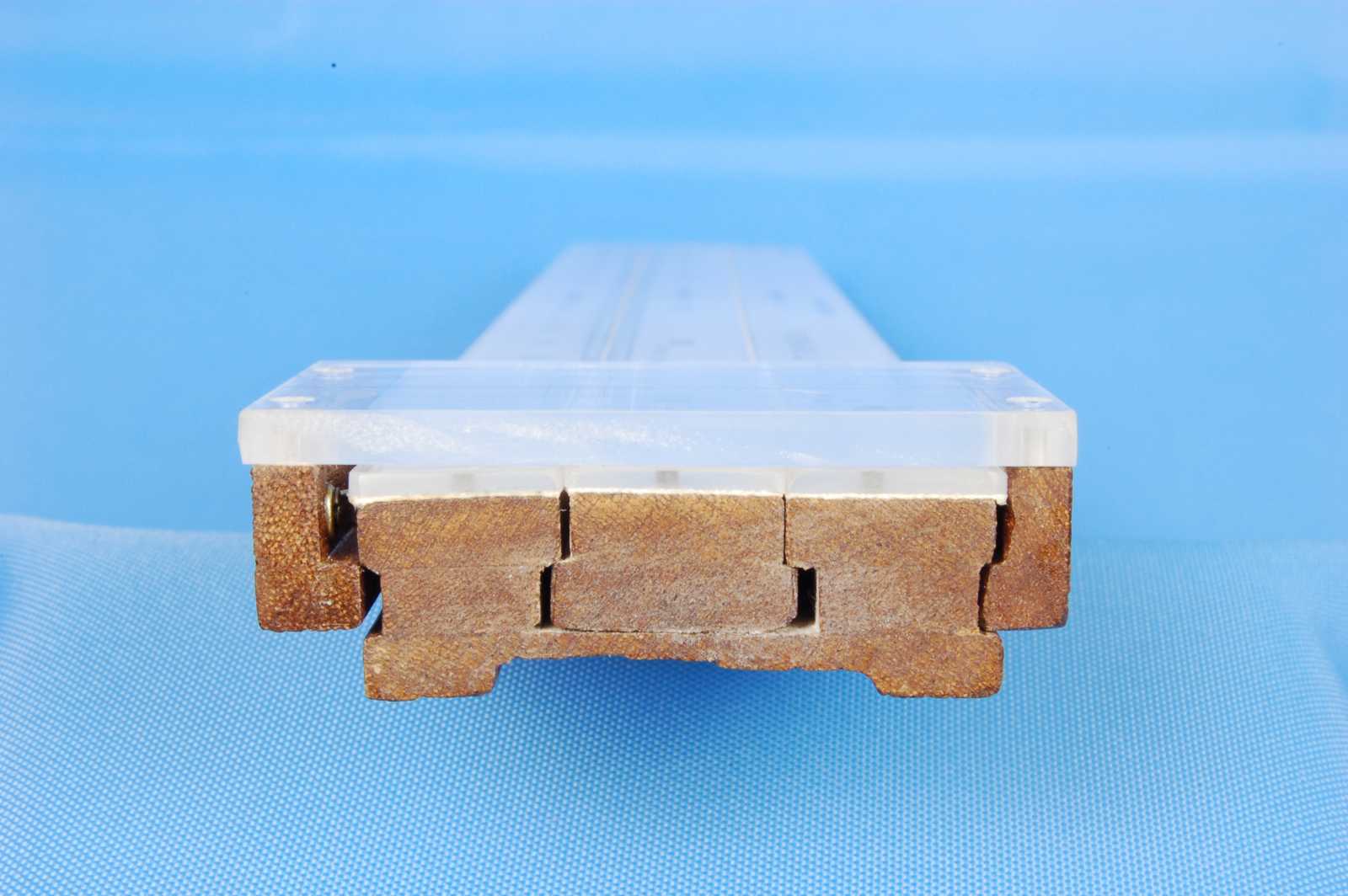

Solid stock constructed from laminated 4mm thick mahogany strip to make well and slide and cursor grooves.
Square top and bottom edges. Mid level cursor grooves. Shallow rebate in back . Front faced with 1mm Perspex. Paper scales and Perspex fixed with clear double-sided tape and anchored with M1.2 machine screws, one each at left & right ends of upper and lower rails (4 in total). Upper and lower rails equal widths (mm) - 12 Varnished excluding sliding contact surfaces and Perspex. Length x Width x Height (mm) - 268 x 36 x 13 |
||||
| Slide: |
Single sided
Constructed from laminated 4mm mahogany strip to form locating tongue. Front faced with 1mm Perspex. Paper scales and Perspex fixed with clear double-sided tape and anchored with M1.2 machine screws, one each at left & right ends (2 in total). Varnished excluding sliding contact surfaces and Perspex. Front face width (mm) - 12 |
Cursor: |
3mm thick Perspex pane attached to seperate top and bottom runners.
Runners fashioned from laminated 4mm mahogany strip. Varnished excluding sliding contact surfaces and Perspex. Pane attached to runners with 4 x M1.2 machine screws, one in each corner. Steel spring on top runner, mounted at left end with a M1.2 machine screw. Single central full length hairline. Width x Height (mm) - 32 x 45 |
||
| Printing (colours as shown) | |||||
| Stock: |

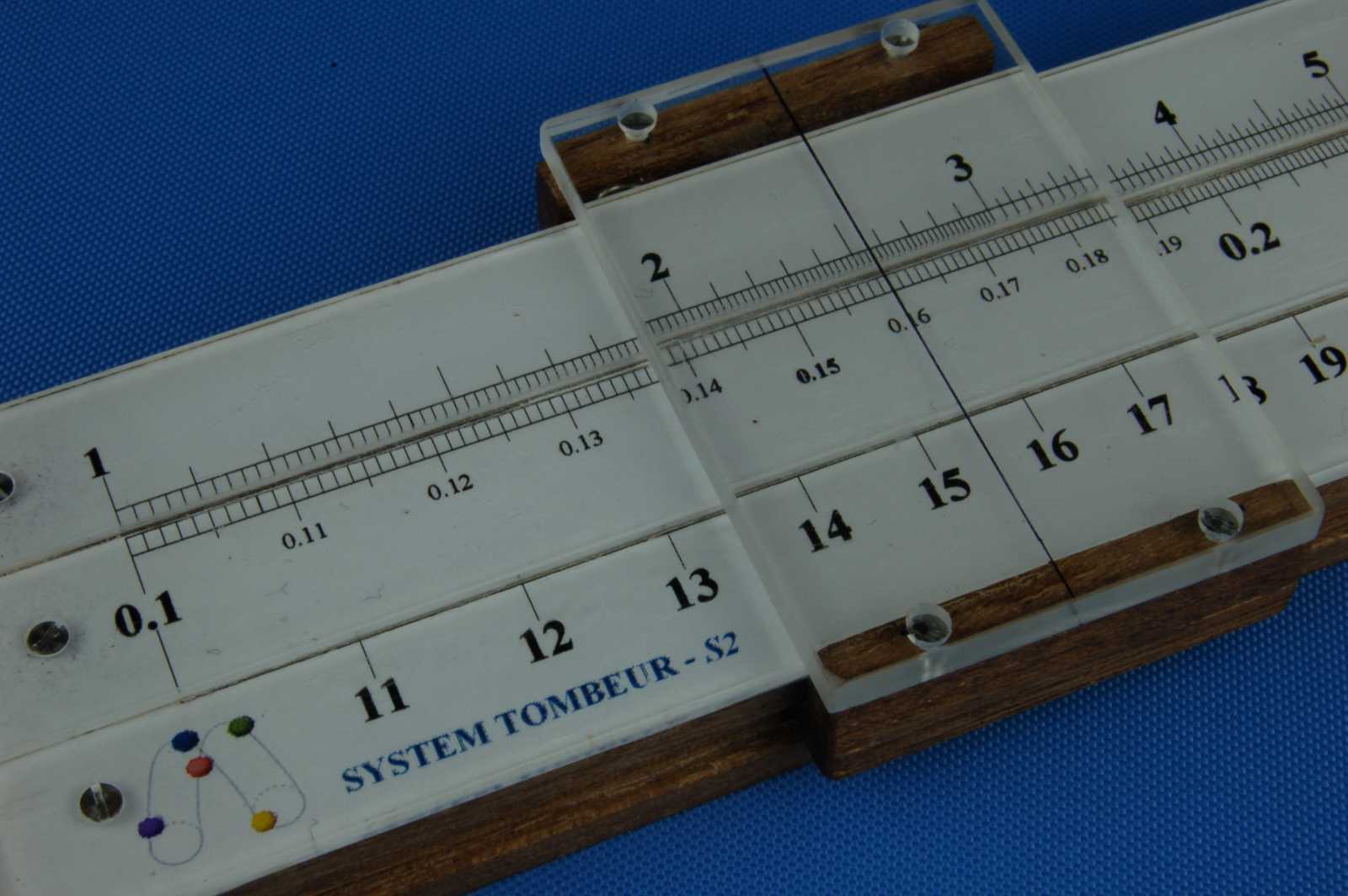

Juggling pattern logo + "SYSTEM TOMBEUR - S2" on bottom of lower rail at left end.
"JUGGLER'S SLIDE RULE" on bottom of lower rail in centre. "MADE IN ENGLAND BY C TOMBEUR" on bottom of lower rail at right end. |
||||
| Slide: | - | ||||
| Cursor: | - | ||||

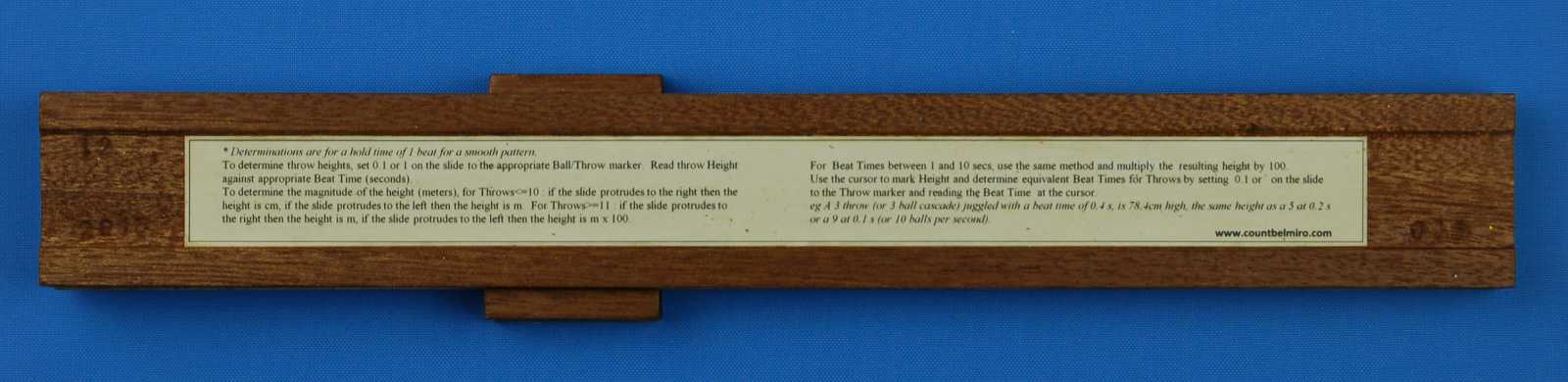

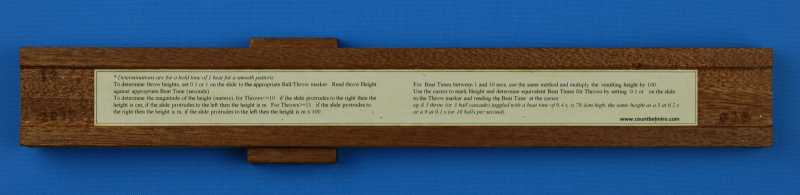

| Labels: | On back, summary instructions, with footer "www.countbelmiro.com" | ||||
| Instructions | |||||
| 8 page (including cover) booklet with full instructions, examples and care information, which can be seen here. | |||||
| Box (colours as shown) | |||||
| Style: | None | L x W x D mm: | - | ||
| Material: | - | Colour: | - | ||
| Construction: | - | ||||
| Printing: | - | ||||
| Labels: | - | ||||
| Detail Images | |||||
|
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
|
|||||
