A W Faber "Castell" 73/91
(10cm Scale Mini rule, Enhanced Mannheim)
Click on the images for enlargements.
A W Faber "Castell" 73/91 (1940) |
|
|
Summary
|
|
System:
|
Enhanced Mannheim
|
|
Specialization:
|
-
|
|
Type:
|
Closed frame
|
|
Material:
|
Pearwood
|
|
Facings:
|
Celluliod
|
|
Scale Length:
|
10cm
|
No of Scales:
|
7
|
|
Front Length:
|
122mm
|
Front Width:
|
18mm
|
|
Language:
|
German
|
Origin:
|
-
|
|
Date:
|
1940
|
|
Features/Notes:
|
Mini rule. No Faber-Castell model number, made for Klawun and sold as model No. 014. Promotional rule.
|
|

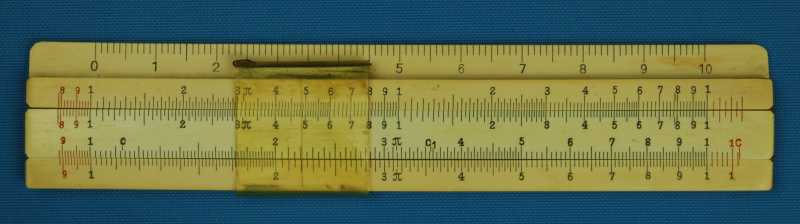

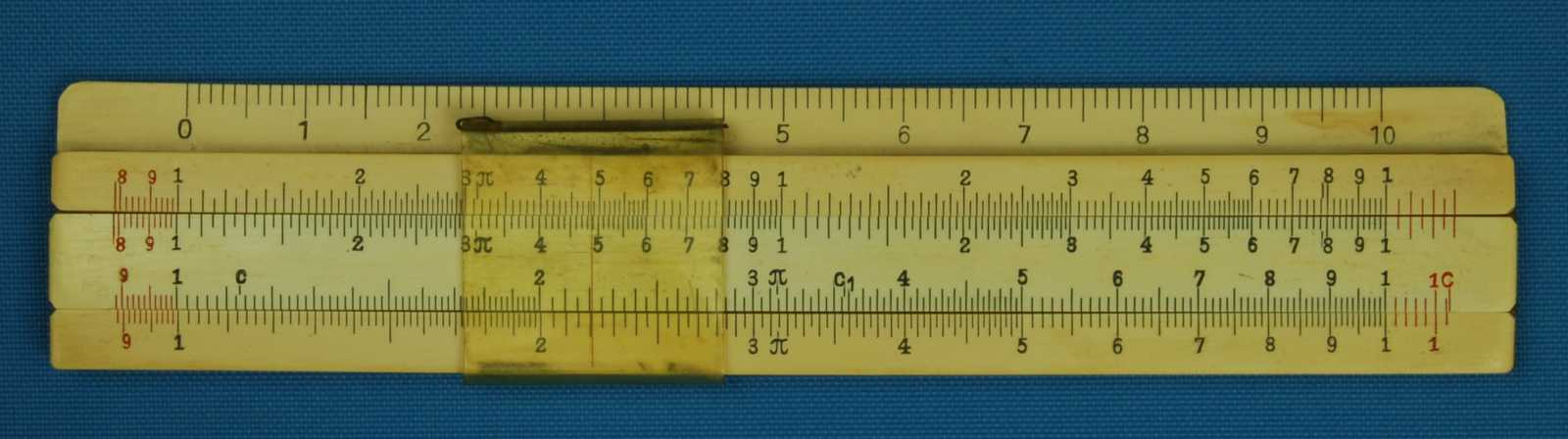

Scales (colours as shown)
|
|
Front:
|
A [ B, C ] D
|
Back:
|
[ S, L, T ]
|
|
Labels Left:
|
-
|
Labels Left:
|
[ sin, lg, tg ]
|
|
Labels Right:
|
-
|
Labels Right:
|
[ sin, lg, tg ]
|
|
Style:
|
Normal
|
Typeface:
|
Serif
|
|
Extensions:
|
A, B, C & D beyond 1 & 10 in red
|
Decimals:
|
-
|
|
Gauge Marks:
|
p (3.14) on A, B, C & D
C (1.13) on C
C1 (3.57) on C
|
Rulers:
|
cm on top edge flange
|
|
Features/Notes:
|
-
|
|
Construction
|
|
Stock:
|
Upper and lower wooden stock rails joined by celluloid back panel.
Left and right viewing cutouts with index marks, in back for reverse of slide.
6mm flange on top edge for ruler, square bottom edge.
High cursor grooves both cut parallel to front face.
Flat back.
Front and top flange celluloid faced.
Length x Width x Height (mm) - 122 x 24 x 4
|
|

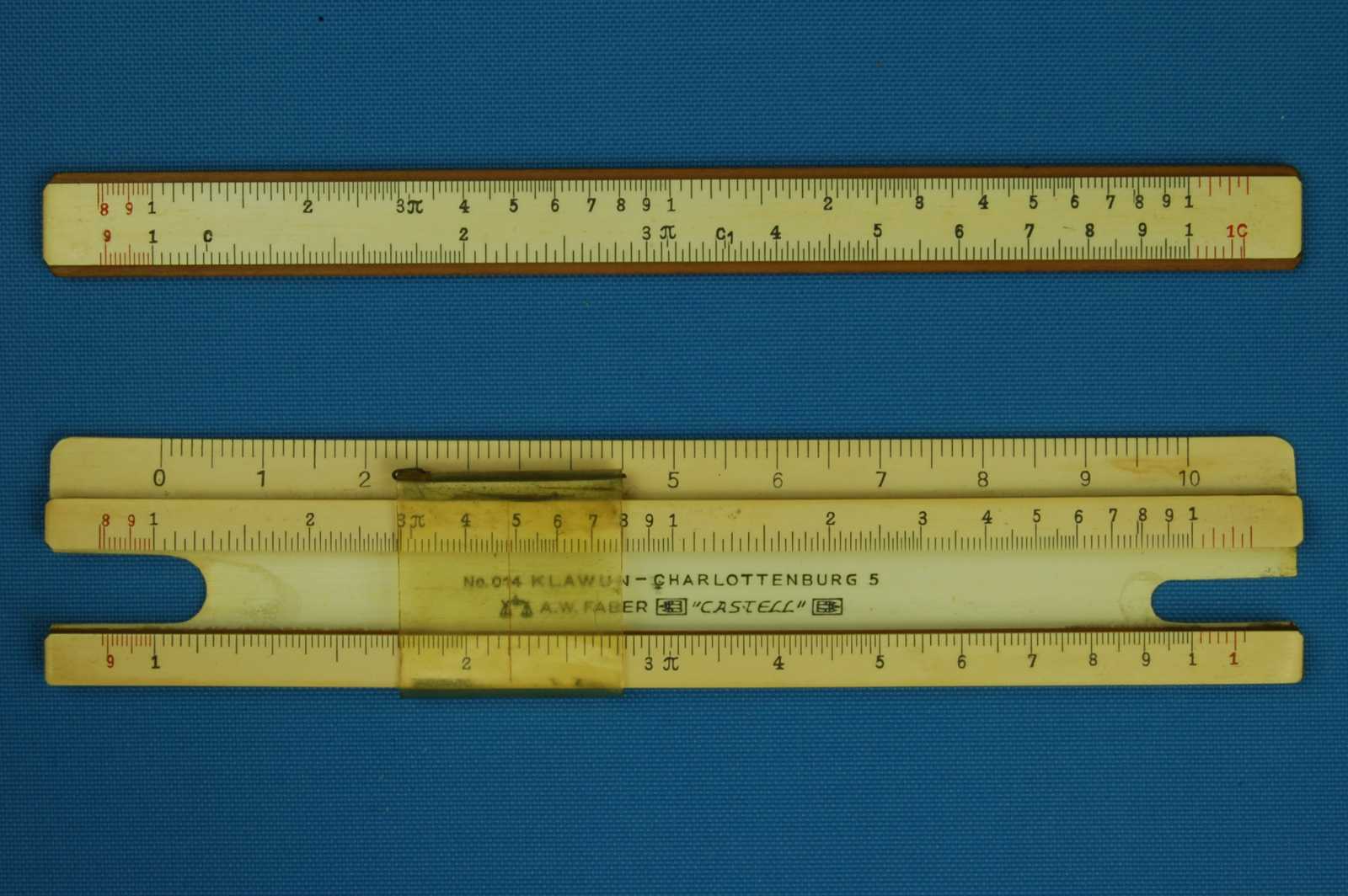

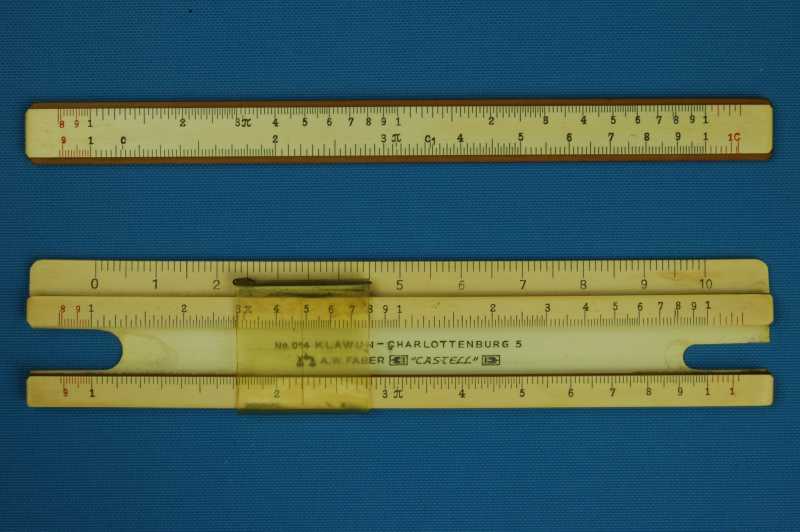

Slide:
|
Double sided
Celluliod faced on both sides
Front face width (mm) - 8
|

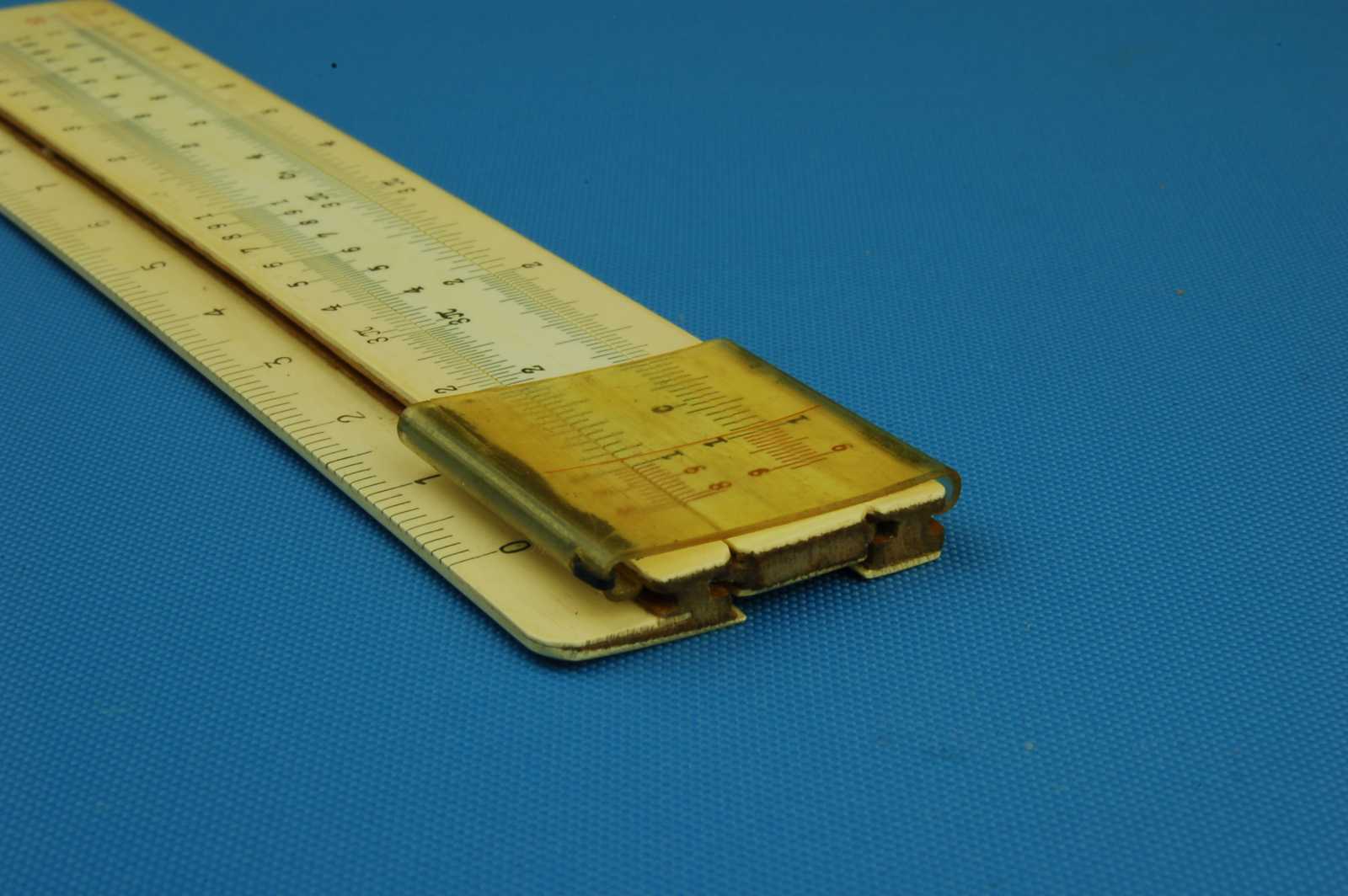

Cursor:
|
Single piece moulded plastic.
Left end riveted steel spring on top runner.
Single central full length red hairline.
Width x Height (mm) - 31 x 33
|
|
Printing (colours as shown)
|
|
Stock:
|

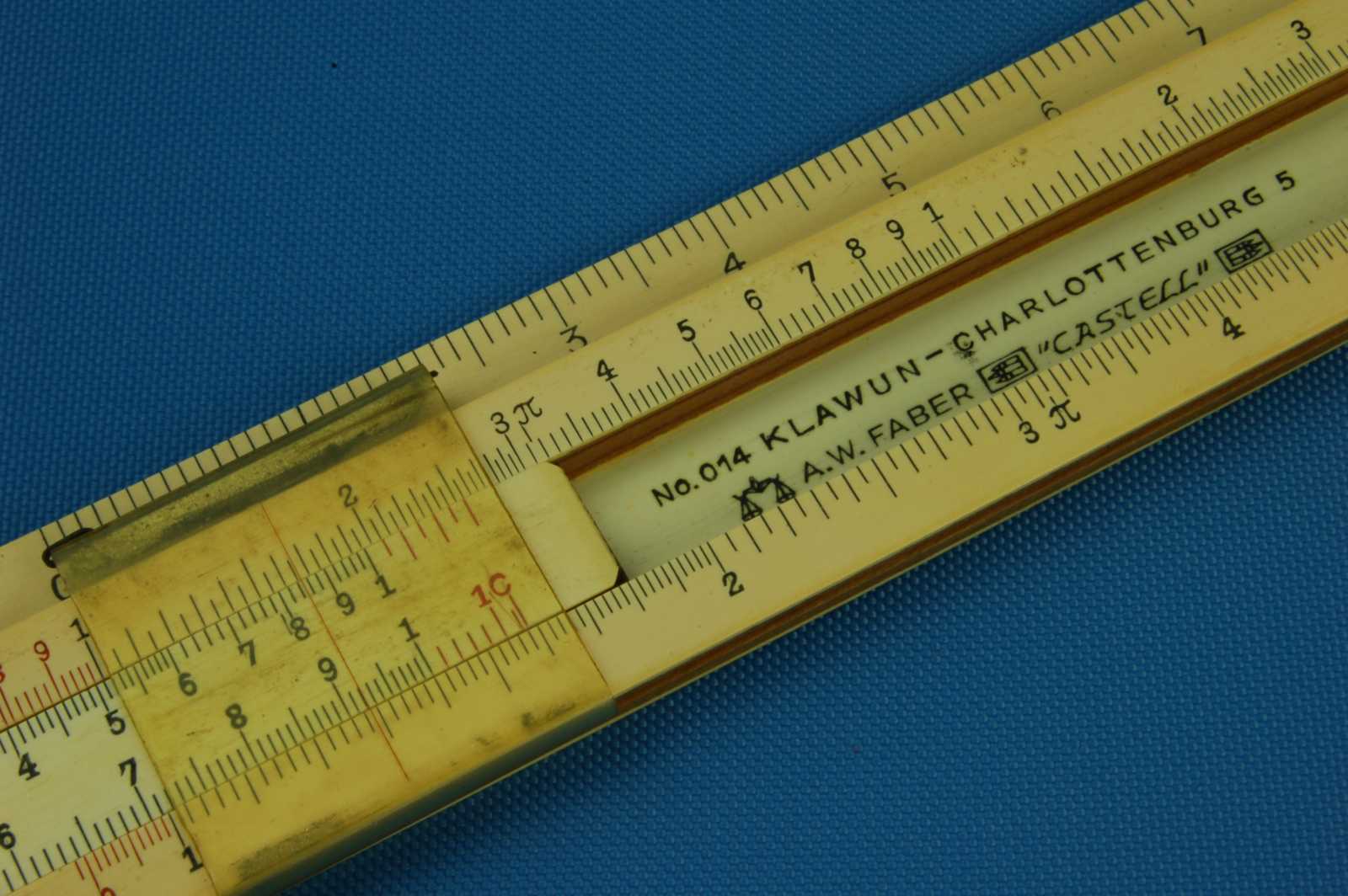

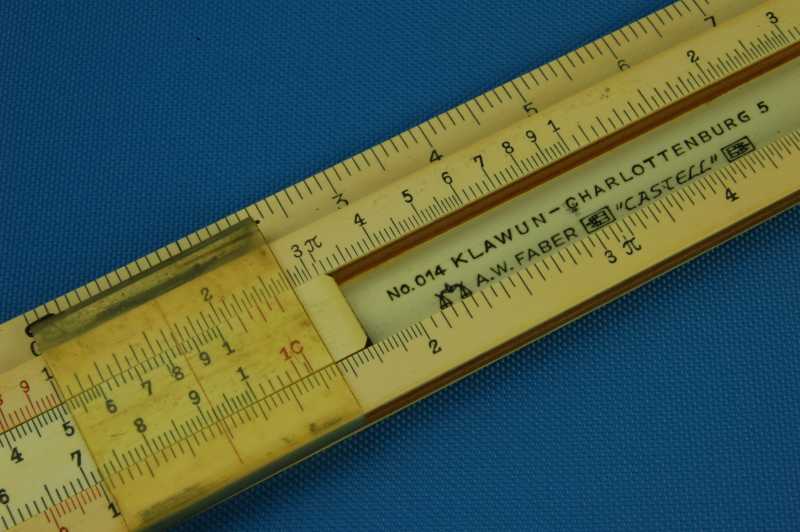

"No.014 KLAWUN - CHARLOTTENBURG 5" and underneath scales logo + "A.W.FABER" + ""CASTELL"" between lying castles in the centre of the well, sans-serif.

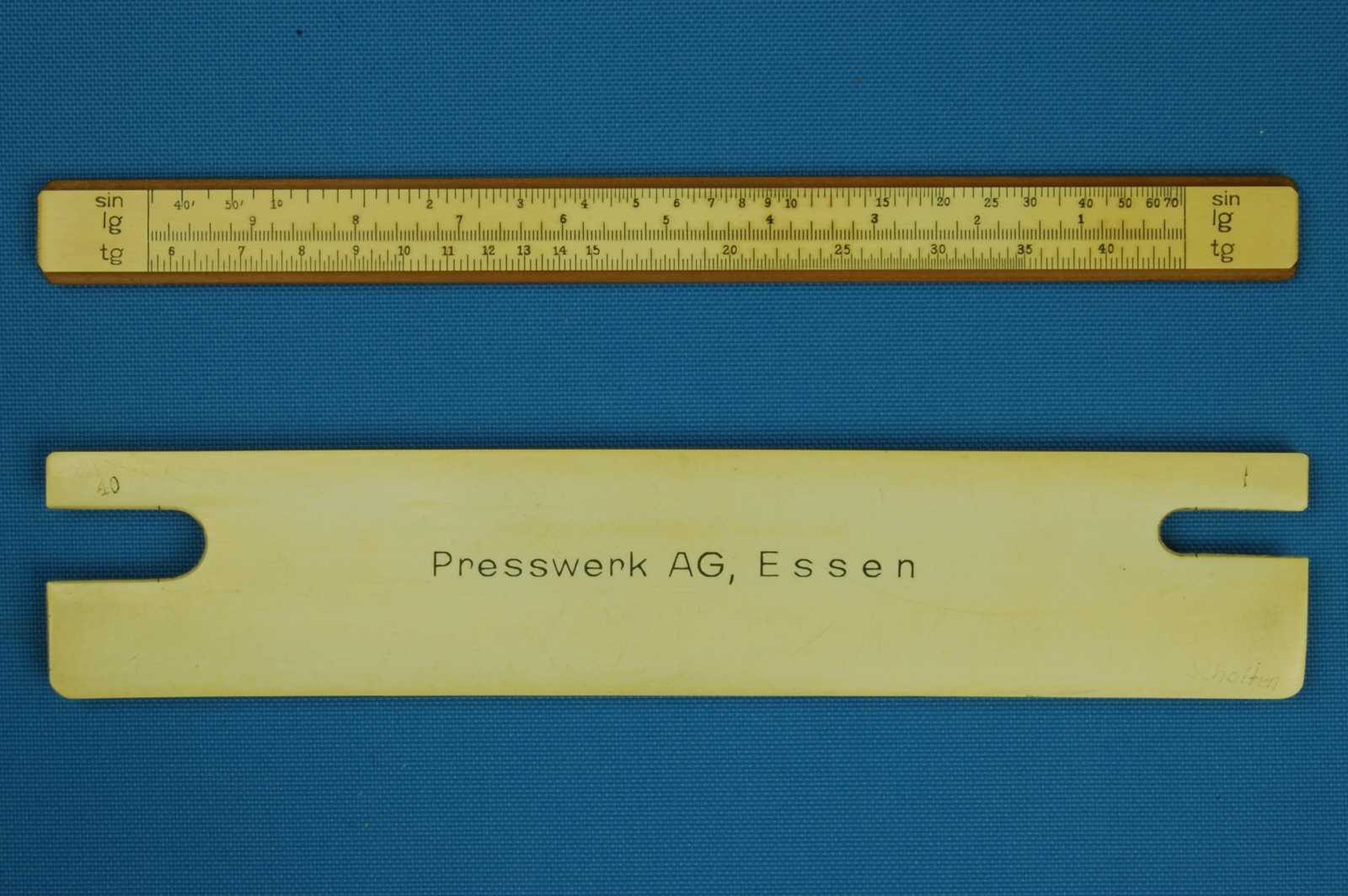

"Presswerk AG, Essen" in centre of back, sans-serif.
|
|
Slide:
|
-
|
|
Cursor:
|
-
|
|
Labels:
|
None
|
|
Instructions
|
|
None
|
|

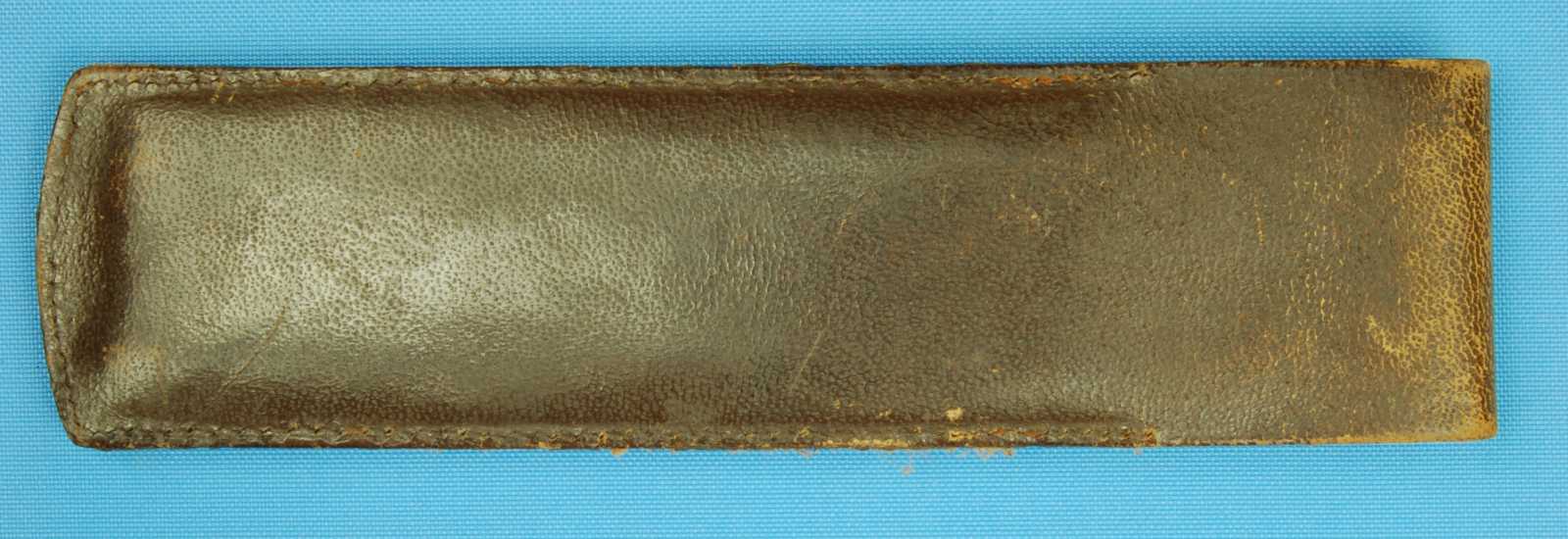

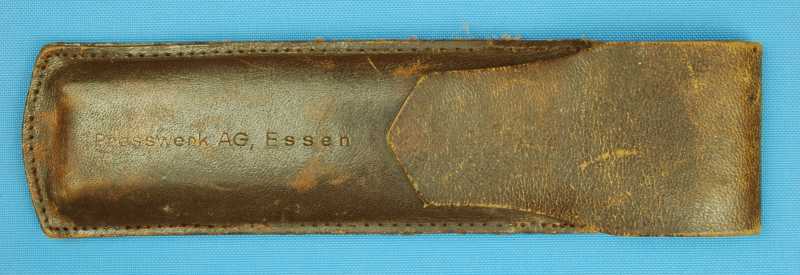

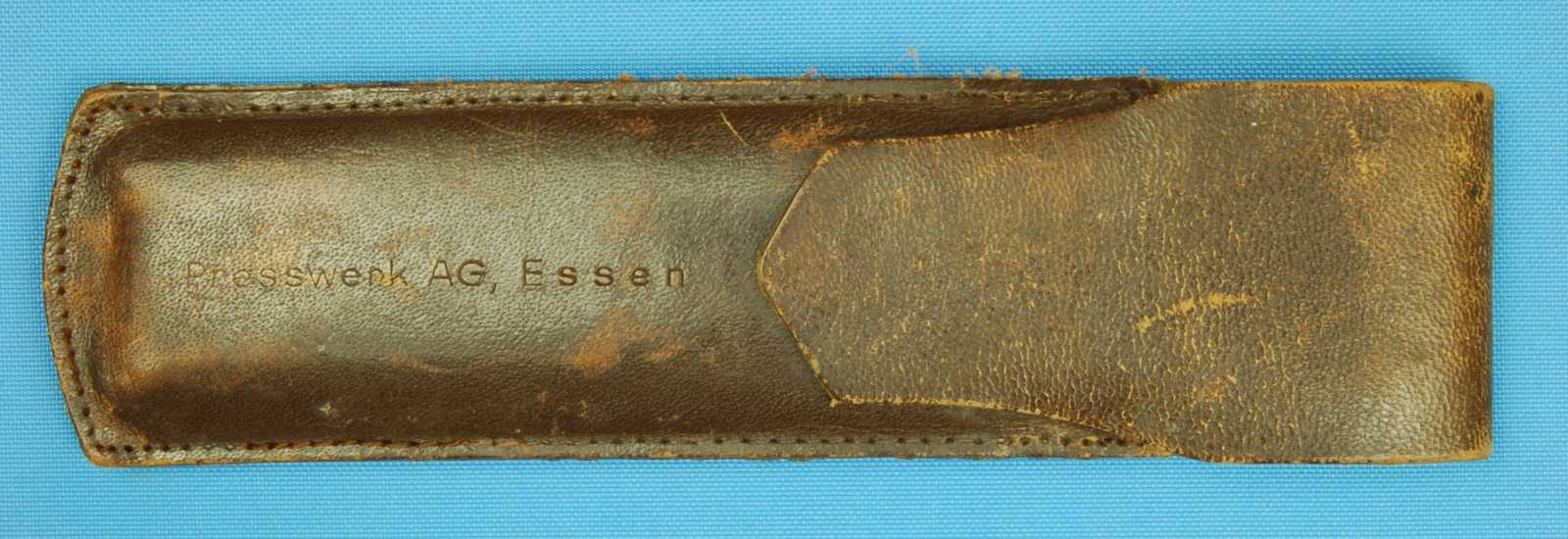

Box (colours as shown)
|
|
Style:
|
Travel case
|
L x W x D mm:
|
135 x 35 x 7
|
|
Material:
|
Leather
|
Colour:
|
Brown
|
|
Construction:
|
2 piece stitched.
Fold over, tuck-in flap (tuck-in band missing).
|
|
Printing:
|
None
|
|
Labels:
|
None.
|
|
