Juggling Slide Rule - Complex
(24.4cm Scale, Prototype)
Click on the images for enlargements.

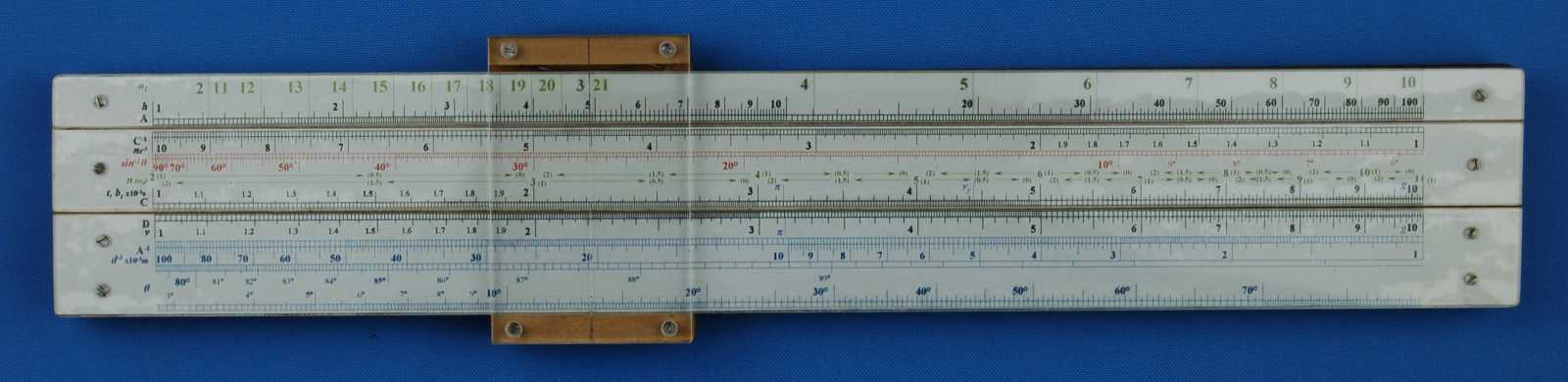

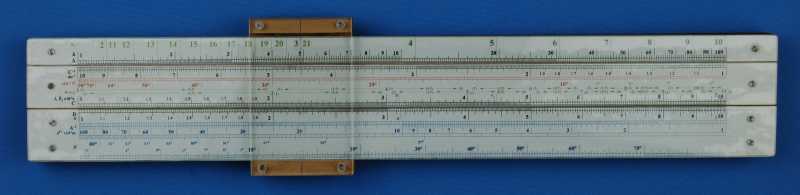

Juggling Slide Rule - Complex (2011) |
|
|
Summary
|
|
System:
|
System Tombeur prototype
|
|
Specialization:
|
Juggling
|
|
Type:
|
Closed frame
|
|
Material:
|
Mahogany laminate
|
|
Facings:
|
Perspex/paper
|
|
Scale Length:
|
24.4cm
|
No of Scales:
|
9
|
|
Front Length:
|
282mm
|
Front Width:
|
46mm
|
|
Language:
|
English
|
Origin:
|
England
|
|
Date:
|
2011, October
|
|
Features/Notes:
|
Advanced Juggler's slide rule, superceded by model A2.
|
|
Scales (colours as shown)
|
|
Front:
|
§1, A [ CI, SI, §2, C ] D, AI, §3 |
Back:
|
-
|
|
Labels Left:
|
n1, h A [ C-1 ns-1, sin-1q, n(wb), t bt x10-1s C ] D v, A-1 d-1 x10-2m, q |
Labels Left:
|
-
|
|
Labels Right:
|
-
|
Labels Right:
|
-
|
|
Style:
|
Railway track
|
Typeface:
|
Serif
|
|
Extensions:
|
-
|
Decimals:
|
Tenths between 1 & 2 on CI, C & D
|
|
Gauge Marks:
|
p (3.14) on C & D
g (9.81) on C & D
|
Rulers:
|
-
|
|
Features/Notes:
|
Printed on paper with Perspex facing.
§1 scale on upper stock rail (labelled n1) is a specialist index scale of throw weights in a juggling pattern.

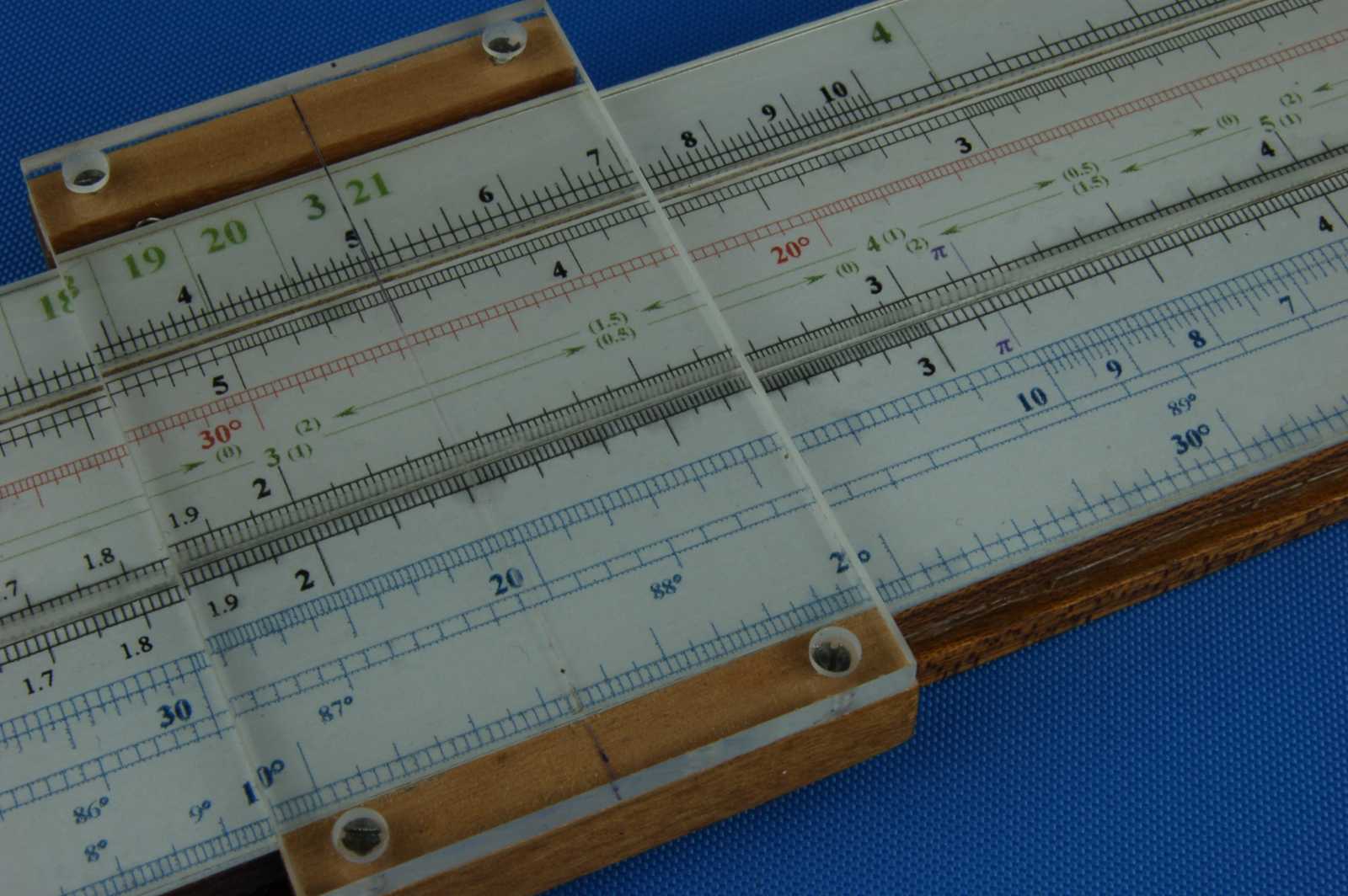

§2 scale on slide (labelled n(wb)) is a specialist scale of throw weight and hold times in a juggling pattern, which uses the tick marks of the C scale below it.
§3 scale on lower stock rail (labelled q) is a two line, specialist scale for throw angles in a juggling pattern.
|
|
Construction
|
|
Stock:
|

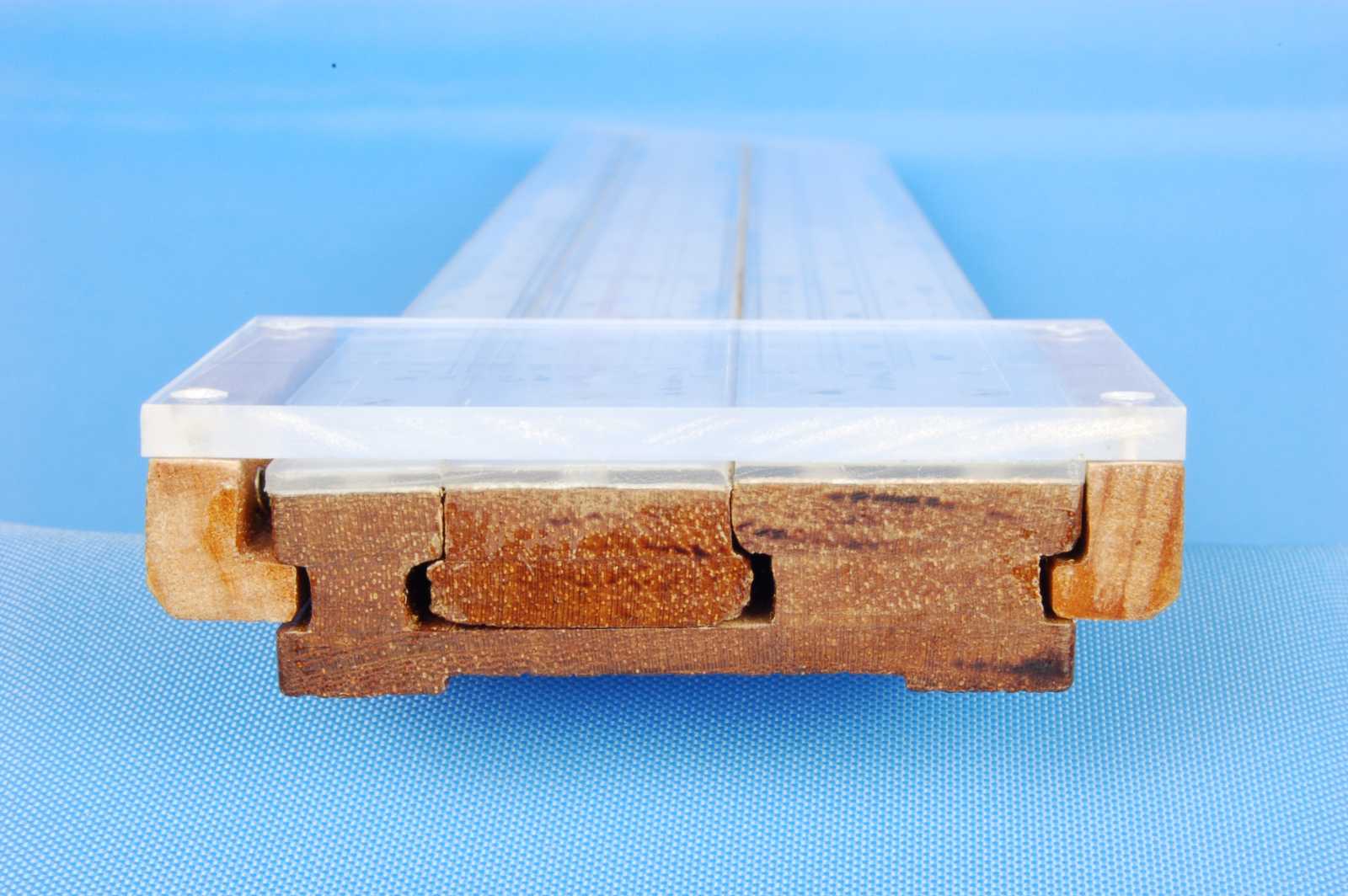

Solid stock constructed from laminated 4mm thick mahogany strip to make well and slide and cursor grooves.
Square top and bottom edges.
Mid level cursor grooves.
Shallow rebate in back .
Front faced with 1mm Perspex.
Paper scales and Perspex fixed with clear double-sided tape and anchored with M1.2 machine screws, one each at left & right ends of upper stock rail, and two each at left & right ends of lower stock rail (6 in total).
Upper and lower rail widths respectively (mm) - 10 & 19.5
Fully varnished (excluding Perspex).
Length x Width x Height (mm) - 282 x 46 x 13
|
|
Slide:
|
Single sided
Constructed from laminated 4mm mahogany strip to form locating tongue.
Front faced with 1mm Perspex.
Paper scales and Perspex fixed with clear double-sided tape and anchored with M1.2 machine screws, one each at left & right ends (2 in total).
Fully varnished (excluding Perspex).
Front face width (mm) - 16.5
|
Cursor:
|
3mm thick Perspex pane attached to seperate top and bottom runners.
Runners fashioned from beechwood block.
Fully varnished (excluding Perspex).
Pane attached to runners with 4 x M1.2 machine screws, one in each corner.
Steel spring on top runner, mounted at left end with a M1.2 machine screw.
Single central full length hairline.
Width x Height (mm) - 38 x 59
|
|
Printing (colours as shown)
|
|
Stock:
|
-
|
|
Slide:
|
-
|
|
Cursor:
|
-
|
|
Labels:
|

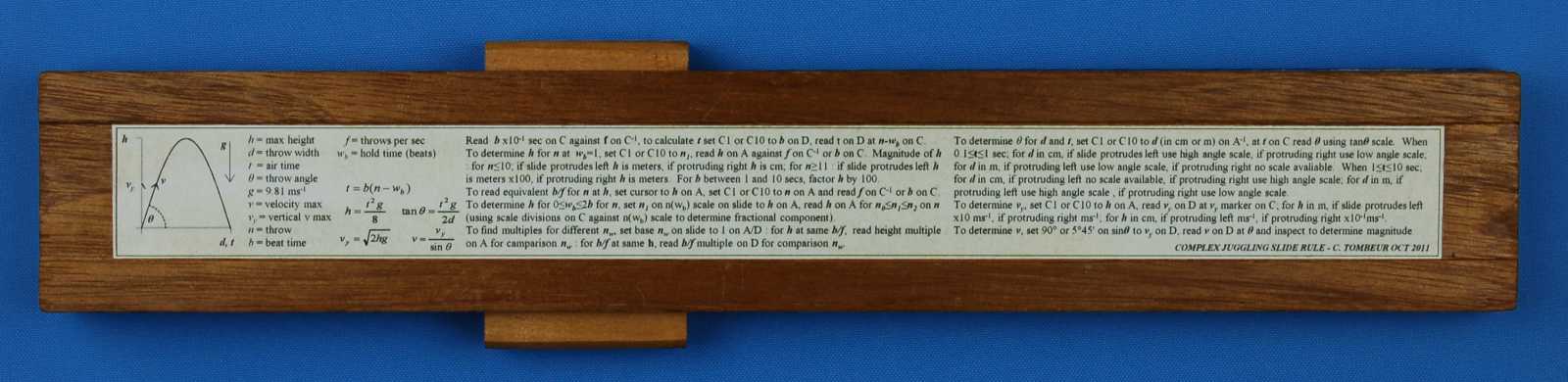

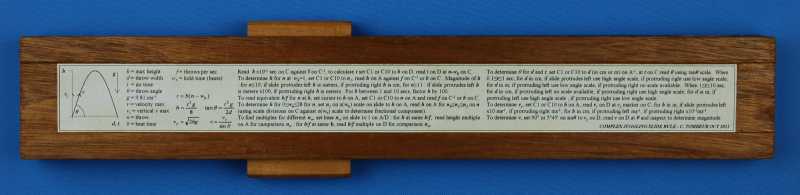

On back, summary instructions, formulae and variables, with footer "COMPLEX JUGGLING SLIDE RULE - C. TOMBEUR OCT 2011"
|
|
Instructions
|
|
Guide to Simple and Complex Juggling slide rules can be downloaded from the link above.
|
|
