Juggler's Slide Rule - S3
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Juggler's Slide Rule - S3 (2012) |
|||||
|
|||||
|
Summary | ||||
| System: | System Tombeur | ||||
| Specialization: | Juggling | ||||
| Type: | Closed frame | ||||
| Material: | Wallnut laminate | ||||
| Facings: | Perspex/paper | ||||
| Scale Length: | 13cm | No of Scales: | 3 | ||
| Front Length: | 146mm | Front Width: | 30mm | ||
| Language: | English | Origin: | England | ||
| Date: | 2012, December | ||||
| Features/Notes: |
Basic Juggler's slide rule.
Pocket version of model S2 |
||||
| Scales (colours as shown) | |||||

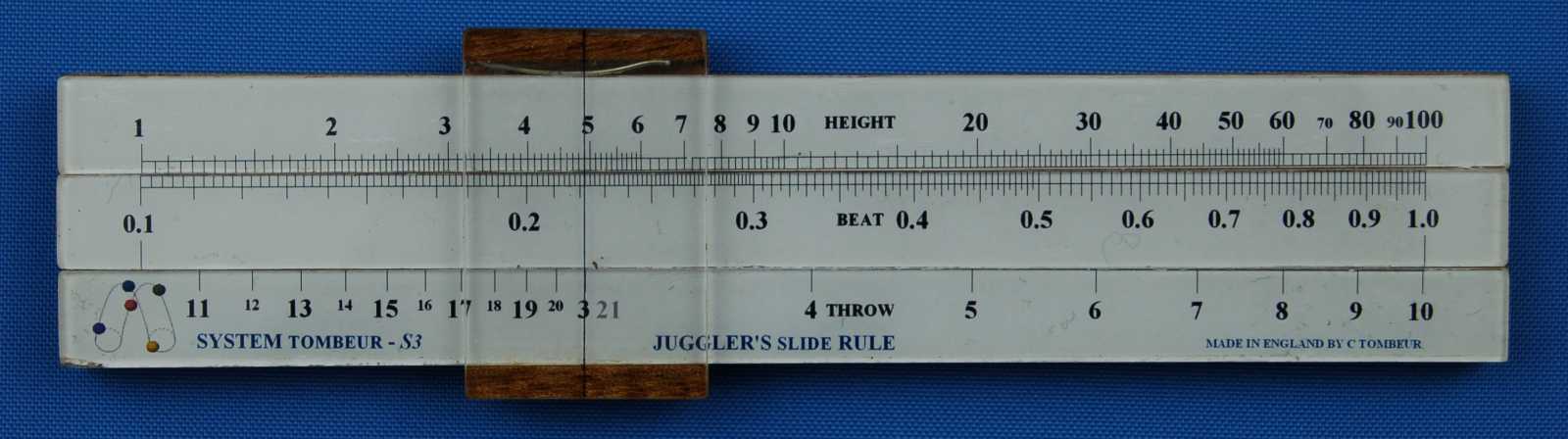

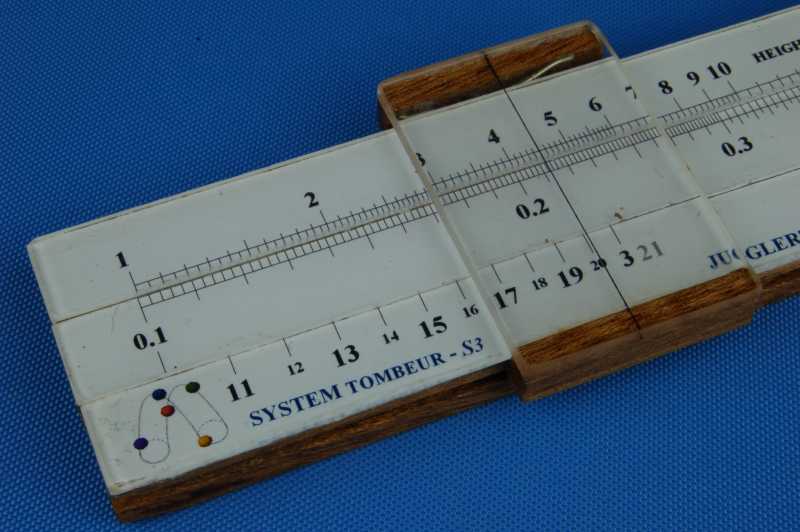

| Front: | A [ C ] §1 | Back: | - | ||
| Labels Left: | - | Labels Left: | - | ||
| Labels Right: | HEIGHT [ BEAT TIME ] BALLS/THROW | Labels Right: | - | ||
| Style: | Railway track | Typeface: | Serif | ||
| Extensions: | - | Decimals: | Integers on C labelled as tenths | ||
| Gauge Marks: | - | Rulers: | - | ||
| Features/Notes: |
Printed on paper with Perspex facing.
C scale numbers are labelled as x/10 §1 scale (labelled 'BALLS/THROW') is a specialist index scale of throw weights in a juggling pattern. Labels are printed to the right of the centre of the scales. |
||||
| Construction | |||||
| Stock: |

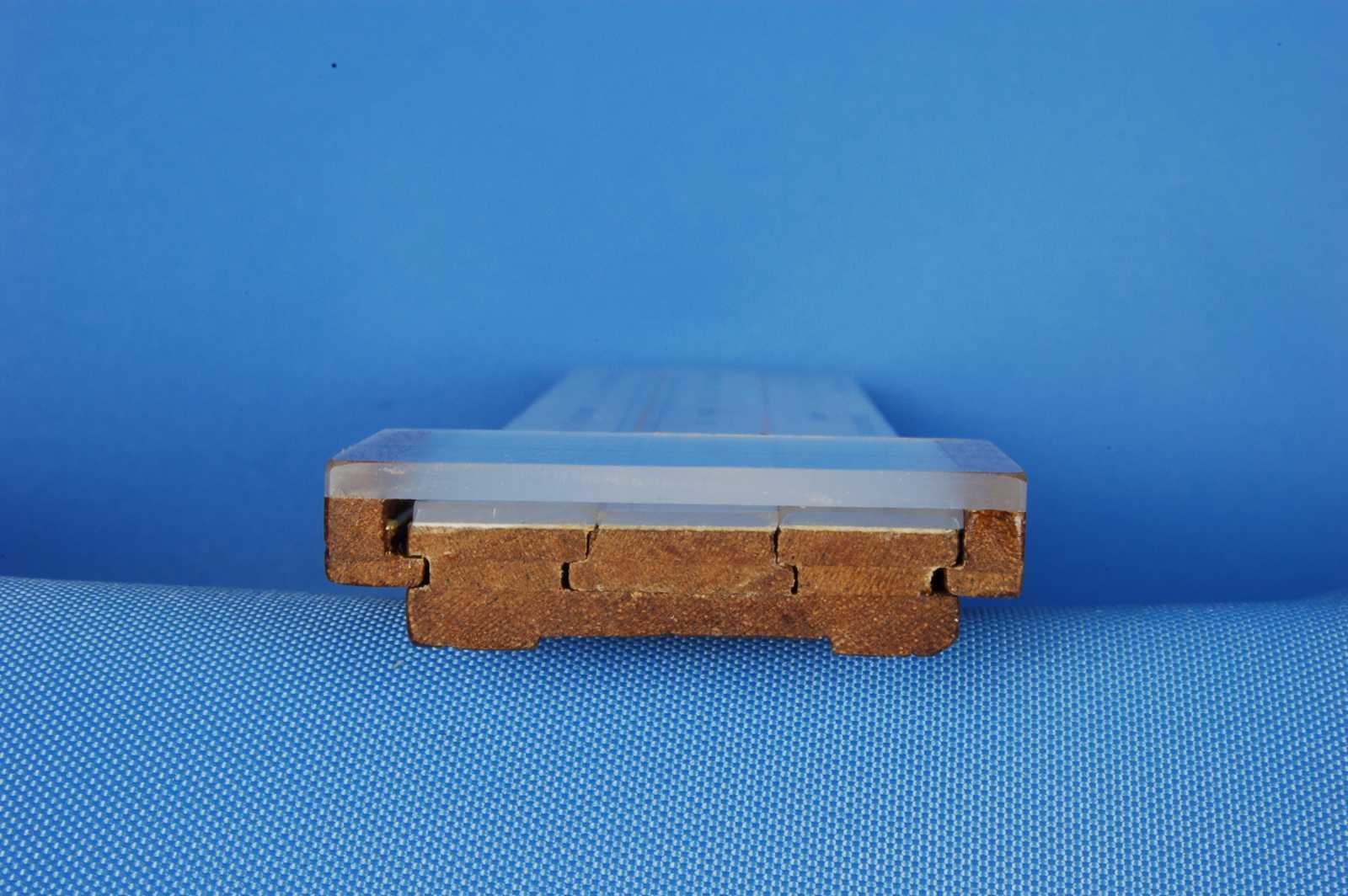

Solid stock constructed from laminated 1.6mm and 3.2mm thick wallnut strip to make well and slide and cursor grooves.
Square top and bottom edges. High cursor grooves. Shallow rebate in back . Front faced with 1mm Perspex. Paper scales and Perspex fixed with clear double-sided tape. Upper and lower rails equal widths (mm) - 10 Varnished excluding sliding contact surfaces and Perspex. Length x Width x Height (mm) - 146 x 30 x 7.5 |
||||
| Slide: |
Single sided
Constructed from laminated 1.6mm wallnut strip to form locating tongue. Front faced with 1mm Perspex. Paper scales and Perspex fixed with clear double-sided tape. Varnished excluding sliding contact surfaces and Perspex. Front face width (mm) - 10 |
Cursor: |
2mm thick Perspex pane attached to seperate top and bottom runners.
Runners fashioned from laminated 1.6mm and 3.2mm wallnut strip. Varnished excluding sliding contact surfaces and Perspex. Steel spring on top runner, mounted at left end. Single central full length hairline. Width x Height (mm) - 24 x 37 |
||
| Printing (colours as shown) | |||||
| Stock: |
Juggling pattern logo + "SYSTEM TOMBEUR - S2" on bottom of lower rail at left end.
"JUGGLER'S SLIDE RULE" on bottom of lower rail in centre. "MADE IN ENGLAND BY C TOMBEUR" on bottom of lower rail at right end. |
||||
| Slide: | - | ||||
| Cursor: | - | ||||

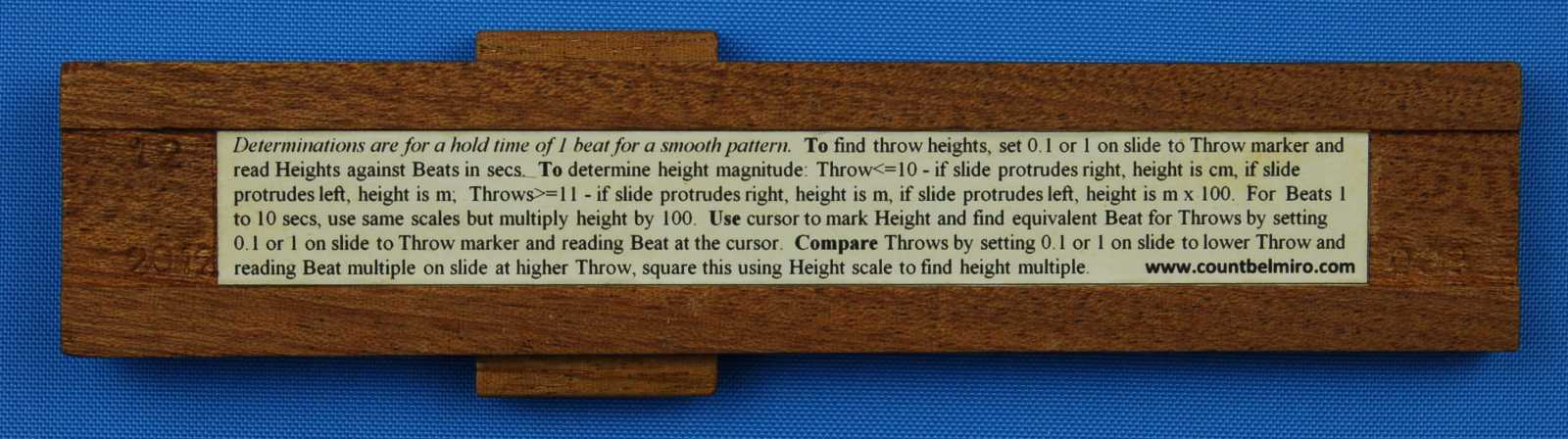

| Labels: | On back, summary instructions, with footer "www.countbelmiro.com" | ||||
| Instructions | |||||
| 8 page (including cover) booklet with full instructions, examples and care information, which can be seen here. | |||||
| Box (colours as shown) | |||||
| Style: | None | L x W x D mm: | - | ||
| Material: | - | Colour: | - | ||
| Construction: | - | ||||
| Printing: | - | ||||
| Labels: | - | ||||
